After bleeding the brakes and adjusting the tie rods enough that I could do a test drive I heard a growling (metal to metal) sound when driving.

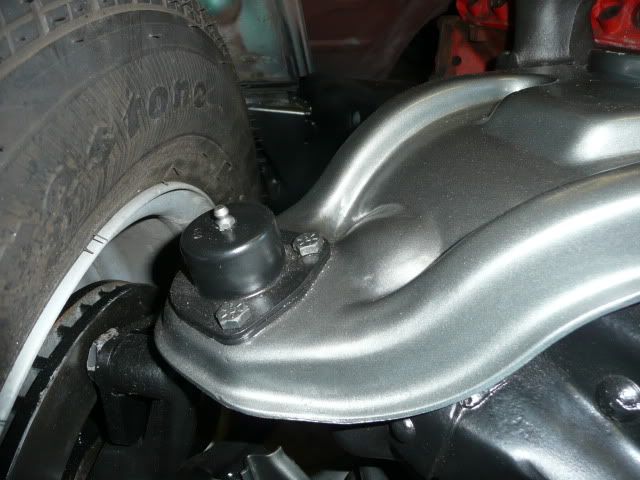

It is the top bolt mounting the rotor bracket to the top of the spindle. I am using the stock spindles, not dropped. Seems like someone else had this problem but I cannot find reference to it. Here are a couple pics.





Do I have to grind the bolt down or should I have to add some shims somewhere. Might have ruined that rotor as you can see, but hope it can be turned.

Thanks in advance for the help.

Don


·
Registered
Joined
·
3,338 Posts
If there is a washer between the bolt head and bracket loose the washer for more clearance...
If that's not enough grind the head down a little...

If more room is still needed countersink a flat head bolt into the bracket...


·
Premium Member
Joined
·
11,901 Posts
Discussion Starter · #3 ·
It does have that one washer that you pound over to sort of lock the bolt.

Also, I forgot to mention that it does not drag when you spin the wheels with it jacked up. Only with weight on it. Of course I wouldn't have driven it if it did.

Don


·
Premium Member
Joined
·
11,901 Posts
Discussion Starter · #4 ·
If there is a washer between the bolt head and bracket loose the washer for more clearance...
If that's not enough grind the head down a little... If more room is still needed countersink a flat head bolt into the bracket...
So Dave, is this a normal problem when adding disc to stock spindles?


Don


·
Registered
Joined
·
3,338 Posts
It does have that one washer that you pound over to sort of lock the bolt.

Also, I forgot to mention that it does not drag when you spin the wheels with it jacked up. Only with weight on it. Of course I wouldn't have driven it if it did.

Don
You could eliminate the washer with a little drop of #242 blue loc-tite then...

Must have been almost 0 clearance the bolt and rotor...
Were the bearings loose enough to allow the rotor to wobble?


·
Premium Member
Joined
·
11,901 Posts
Discussion Starter · #7 ·
Rotor did not wobble with hand pressure and I don't think it wobbled with the wheel on. I will make sure of that when I try your solutions.

Don


·
Premium Member
Joined
·
11,901 Posts
Discussion Starter · #8 ·
You might want to check the preload on the wheel bearings, sounds like they might be a little too loose and lose the washer.
Bob
I will get rid of the washer Bob and also maybe grind a little of the bolt off. Guess I should do the same to the driver's side even though it's not rubbing now.

Don


·
Registered
Joined
·
1,692 Posts
My CPP disk setup had a really close top bolts. All I did was slowly grind the bolt heads down a bit to add extra clearance.


·
Premium Member
Joined
·
11,901 Posts
Discussion Starter · #10 ·
Thanks guys! I removed the washers on both sides and ground the head of the bolt on my passenger side down. The bolt on the driver's side was OK because my kit was missing that one and I local purchased one and it's head was shallower.

Now I need to take it to a tire place and have the front end aligned and will also have them turn that rotor. As it turns out I have a broken stud on that rotor I need replaced so they will do that as well.

Don


·
Administrator & Tech Articles
Joined
·
51,227 Posts
Don....Can't look at mine, since I'm "across the river" for the weekend....Didn't have the problem with either of the ones I did.....55 or 57.....Bob might be on the right track with the bearing preload.....Or maybe you have the wrong inner bearing entirely :confused0006: Wish I could be of more help....Have a photo of my '57 stored.....However, the angle could be better.....Now you got me curious as to how close mine are :confused0006:

The washers on mine are the super thin original type, that you bend over to lock the bolt.



·
Registered
Joined
·
4,480 Posts
Brakes

Don, I have the same type brake set up mine does not have a washer and I add some lock tight to the top bolt it was the blue lock tight so you can remove it if you need to. If its hiting when its on the ground the bearings are not preload and the wheel is loose, with it jack up see if you can tilt the tire up and down , if the other side does not rub then its in the rotor loose check it. Later Bill


·
Registered
Joined
·
11,213 Posts
Hmmmmm, Interesting, but

My CPP disk setup had a really close top bolts. All I did was slowly grind the bolt heads down a bit to add extra clearance.
consider this; the fastener is designed to hold (clamp) the brkt. to the spindle. This design requires a certain torque value. That value is applied to the underside of the bolt head continuously. Lessening the thickness may decrease the clamping force or weaken the fastener and failure occur.

I would rather consider the Flat Head idea. After all, several of the Wilwood designs are done this way so it clears.

JFFT,

Nick


·
Registered
Joined
·
1,692 Posts
Now I need to take it to a tire place and have the front end aligned and will also have them turn that rotor. As it turns out I have a broken stud on that rotor I need replaced so they will do that as well.

Don
Tell them minimal cuts on the rotor,,just until it cleans up. The thicker the rotor, the better.

I have cut really expensive/rare rotors that were throw-away as per the minimal thickness, just cleaned the surfaces up better and removed the heavy grooves and made the customer/friend aware to be easy on the brake pedal. he ran another 30K out of them without problem and they were way under minimal.


·
Premium Member
Joined
·
11,901 Posts
Discussion Starter · #15 ·
Well it for sure has clearance between the bold head and the rotor now. I didn't take much off the one head. For that matter, the head on the driver's side was the same thickness as the passenger after I ground it a little. I think all is good now and will be better after I get it to an alignment shop.

The temp is in the 90's now so I'm not working outside anymore today. Have a funeral to go to tomorrow and then about three days to do some work on my 57' 210 waiting in the wings. I will update that in a later post on the 210.

Thanks again for the advice.

Don


·
Administrator & Tech Articles
Joined
·
51,227 Posts
Glad you got it fixed Don :):congrats:


·
Registered
Joined
·
36,950 Posts
"This design requires a certain torque value. That value is applied to the underside of the bolt head continuously. Lessening the thickness may decrease the clamping force or weaken the fastener and failure occur.

I would rather consider the Flat Head idea. After all, several of the Wilwood designs are done this way so it clears."

I don't buy into this for two reasons. First, if the bolt hole is not oversized, how is the bolt head going to bend or deflect any differently than a thick headed bolt?

Second, have you studied a flat head bolt's head dimensions? Not too different from a cut down hex head.

The reason they make bolt heads as tall as they do is to keep wrenches and sockets from slipping when you apply the torque needed. If you use a six point socket or box wrench on a cut down bolt head you'll be OK.

Sure enough though, you could cut one down too much.


·
Registered
Joined
·
2,125 Posts
I didn't see that you added the Blue Loc-tite. Since you removed the locking washer be sure to add the blue loc-tite (NOT RED). Blue will allow you to take it off if ever necesary will still allowing it to not come loose from Vibration. Just a saftey precaution!!
